December 14, 2021
CDD Vault Update (December 2021): SuperSAR, Enhanced Protocol Searching Capabilities, Helpful Context for Disabled Buttons and Required Protocol Readouts
Since 1865, medicinal chemists and other scientists have been studying structure–activity relationships (SAR), the relationship between the chemical structure of a molecule and its biological activity. With this release, CDD introduces a cutting-edge SAR analysis tool to the CDD Vault Visualization suite.
Visualization’s New SuperSAR Feature

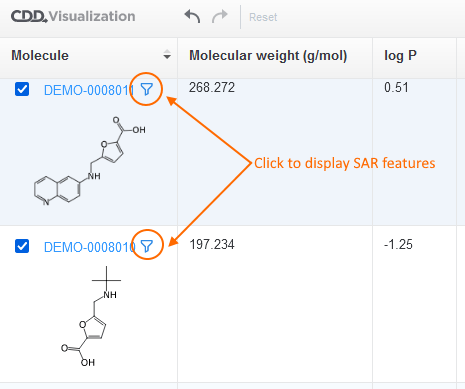

CDD Vault Visualization provides a new “SuperSAR” feature for visualizing SAR fragments for a given set of Molecules loaded into Visualization. The Molecule column in the data table now includes a filter icon next to each chemical structure.![SuperSAR1c](https://www.collaborativedrug.com/hs-fs/hubfs/SuperSAR1c.png?width=465&height=389&name=SuperSAR1c.png)
![list of fragments](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/list-of-fragments-1.png?width=312&height=274&name=list-of-fragments-1.png)

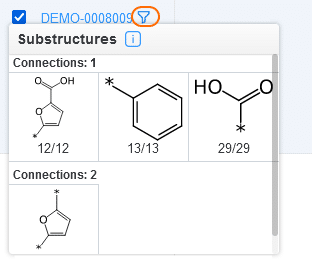

- Molecules are fragmented by breaking bonds between rings and side chains/linkers.
- Not all fragments are displayed - the fragments shown are limited to fragments with 1 or 2 connection points, as indicated by the * symbol.
- A fragment that is a substructure of a larger fragment is only shown if the number of molecules associated with the fragment is different.
- The Visualization filter panel, located on the right side of the page, shows when the data set is currently filtered by a SuperSAR fragment.
![add a filter screenshot](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/add-a-filter-screenshot-1.png?width=242&height=201&name=add-a-filter-screenshot-1.png)
Helpful Context for Disabled Buttons

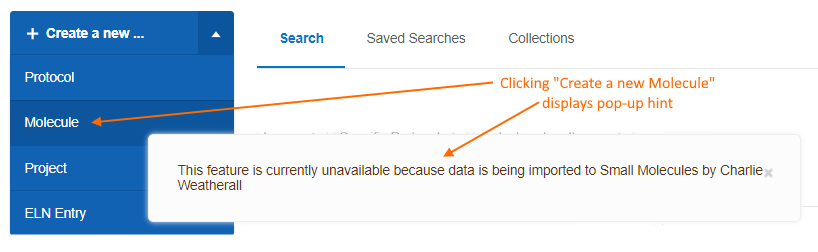

To ensure data integrity, active data imports may temporarily lock portions of your CDD Vault. While locked, certain manual data registration, edit and delete functions will be unavailable to users. Hovering over, or clicking on, an affected button has always displayed a message indicating that this feature was temporarily unavailable.![create a new molecule pop up](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/create-a-new-molecule-pop-up-1.png?width=818&height=252&name=create-a-new-molecule-pop-up-1.png)
New Search Feature for Protocol Dates

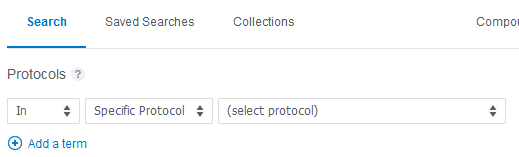

You’ll notice a slight change to the Protocol section of the Explore Data > Search tab. While there are still 3 drop-down boxes available to help you design a query across Protocol data, the options available within these 3 drop-down boxes are a bit different.![search for protocol dates](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-for-protocol-dates-1.png?width=519&height=157&name=search-for-protocol-dates-1.png)
- Use the Specific Protocol option to choose a specific Protocol name for your query
- Use Protocol field to return protocol data that matches a particular value stored in a Protocol field

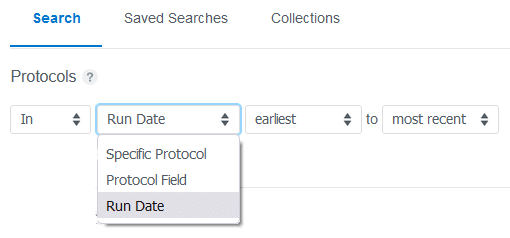

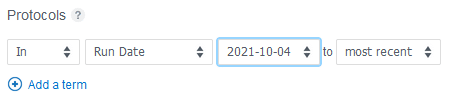

- Use Run Date to query across all the Run Dates for your Protocols
![search by run date](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-by-run-date-1.png?width=510&height=238&name=search-by-run-date-1.png)
![](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-for-specific-protocol-1.png?width=444&height=162&name=search-for-specific-protocol-1.png)
![search by earliest run date](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-by-earliest-run-date-1.png?width=454&height=97&name=search-by-earliest-run-date-1.png)
![search by actual run date](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-by-actual-run-date-1.png?width=458&height=103&name=search-by-actual-run-date-1.png)

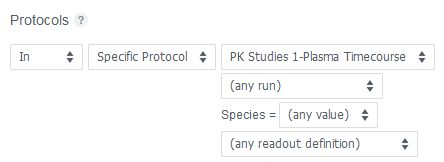

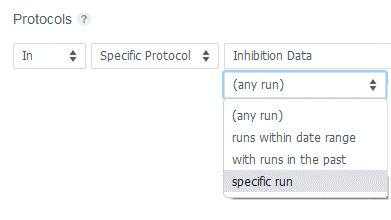

- Searching across the Run Dates within a single Protocol is still part of the Specific Protocol So, for this type of query:
- select Specific Protocol in the middle drop-down
- select the Protocol of interest in the 3rd drop-down
- set up your run date query using the “any run” box under the Protocol name
![search by specific run](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-by-specific-run-1.png?width=391&height=220&name=search-by-specific-run-1.png)
Searching Protocol Fields

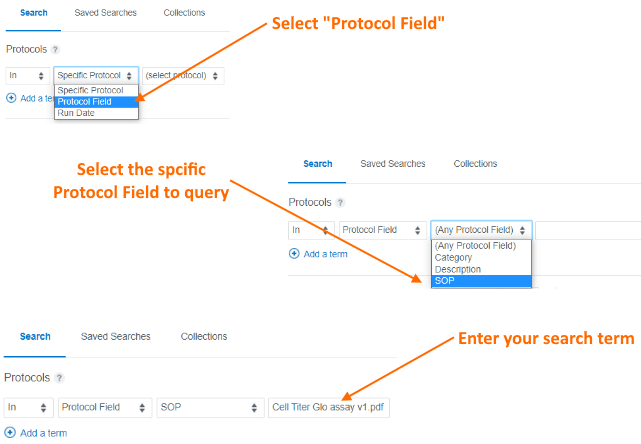

Last month, we introduced the concept of Protocol Fields (the creation of Protocol Fields by Vault Administrators is documented in the “ Protocol business rules” Knowledgebase article). Once your Vault Administrator has created custom Protocol Fields, users can populate these when creating/editing Protocol definitions. To search using your Protocol Fields, go to the “Protocols” sections under Explore Data > Search tab and change the default “Specific Protocol” option to “Protocol Field”. A list of all Protocol fields is displayed. If you leave the value blank, the search will return all protocols with a value for that field (wildcard). Otherwise specify a value for the field and only matching Protocols are returned.![search protocol field](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/search-protocol-field-1.png?width=641&height=444&name=search-protocol-field-1.png)
Making Protocol Readouts Required

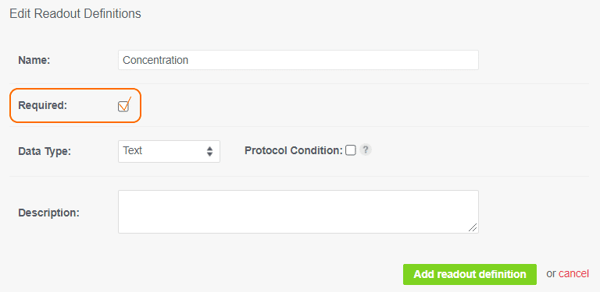

When creating or editing Protocol readout definitions, users can now specify whether they are optional or required.![make protocol readouts required](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/make-protocol-readouts-required-1.png?width=600&height=293&name=make-protocol-readouts-required-1.png)
![](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/raw-data-warning-1-1.png?width=382&height=67&name=raw-data-warning-1-1.png)
![](https://www.collaborativedrug.com/hs-fs/hubfs/Imported_Blog_Media/raw-data-warning-2-1.png?width=272&height=141&name=raw-data-warning-2-1.png)
